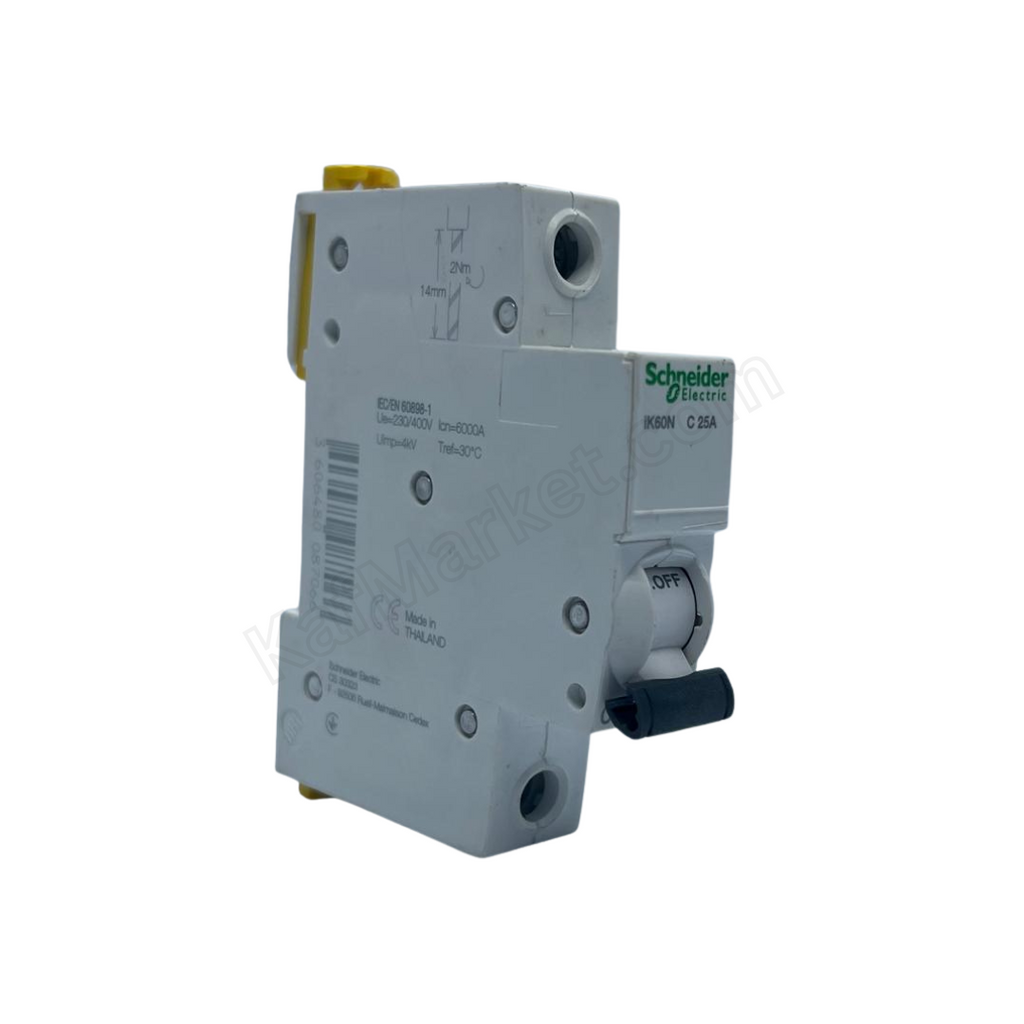

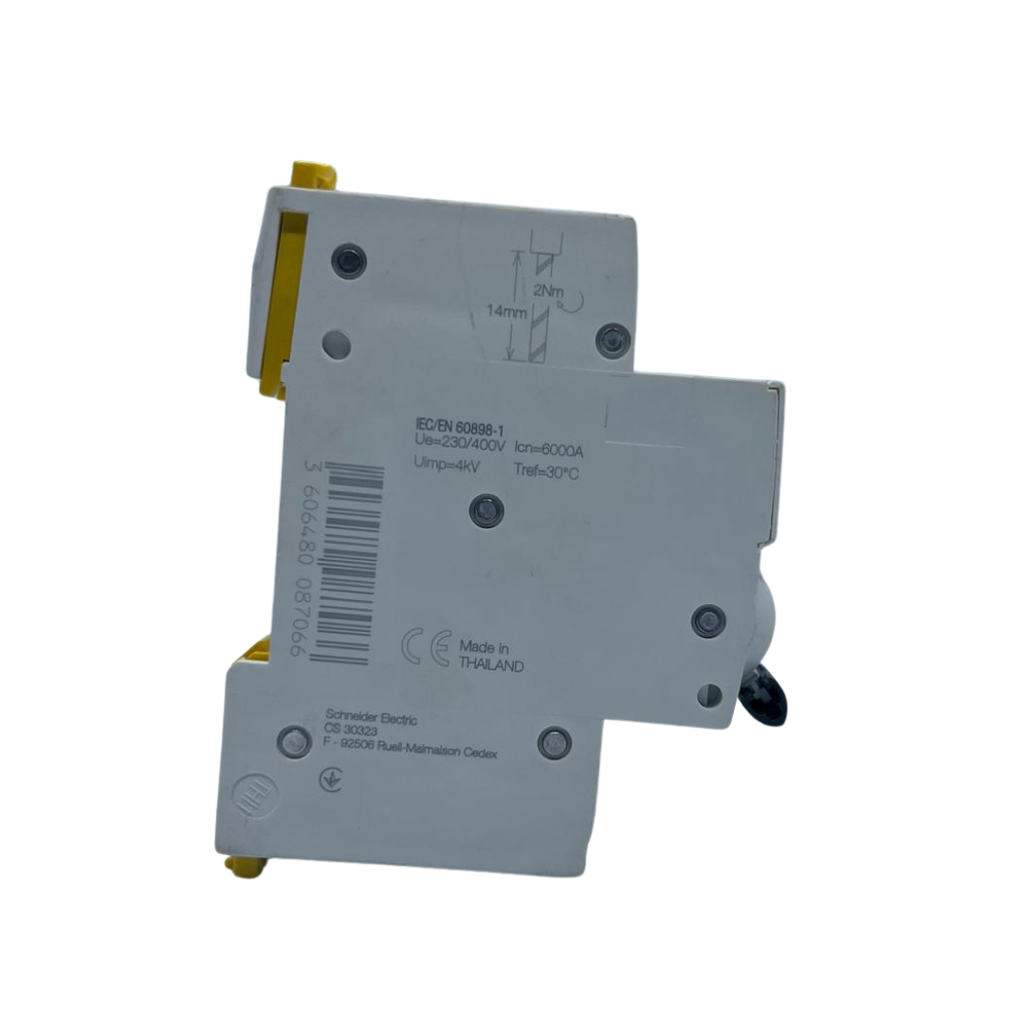

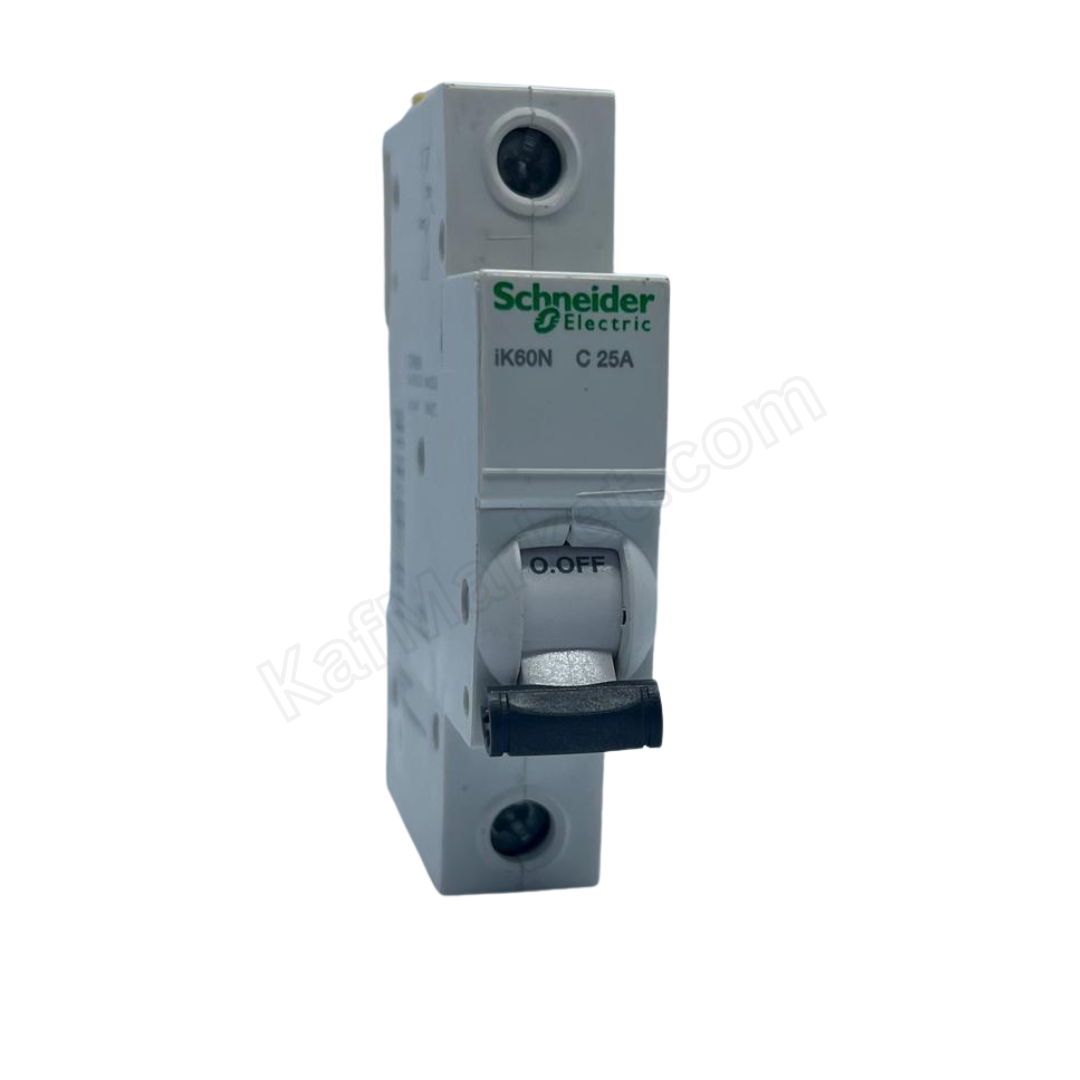

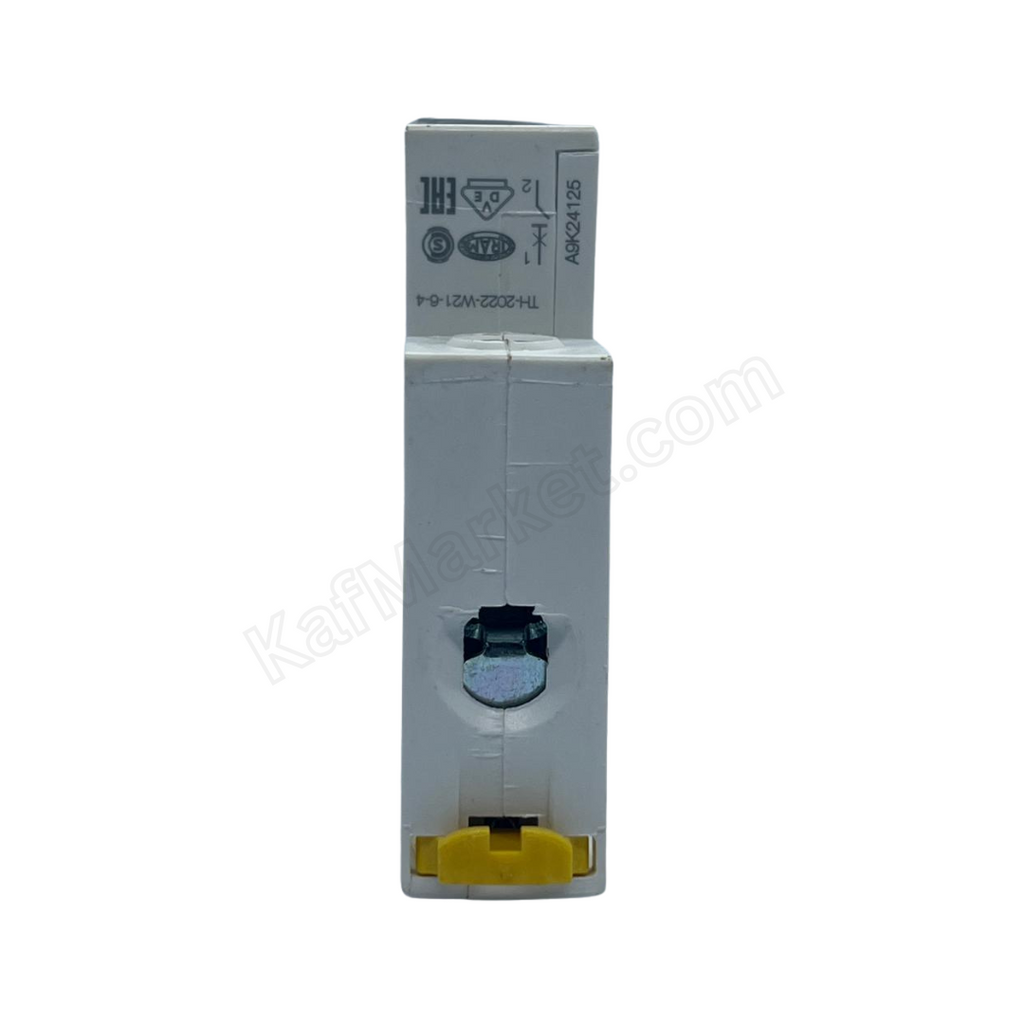

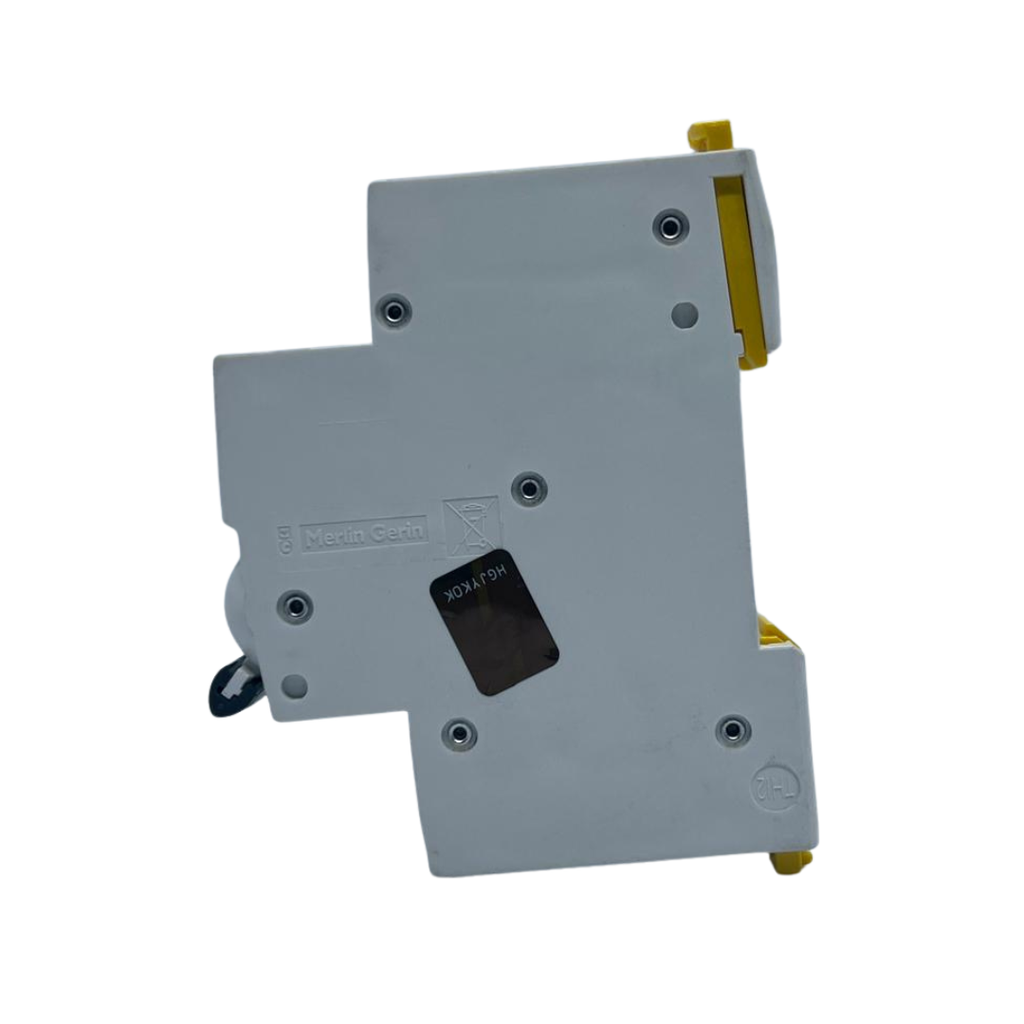

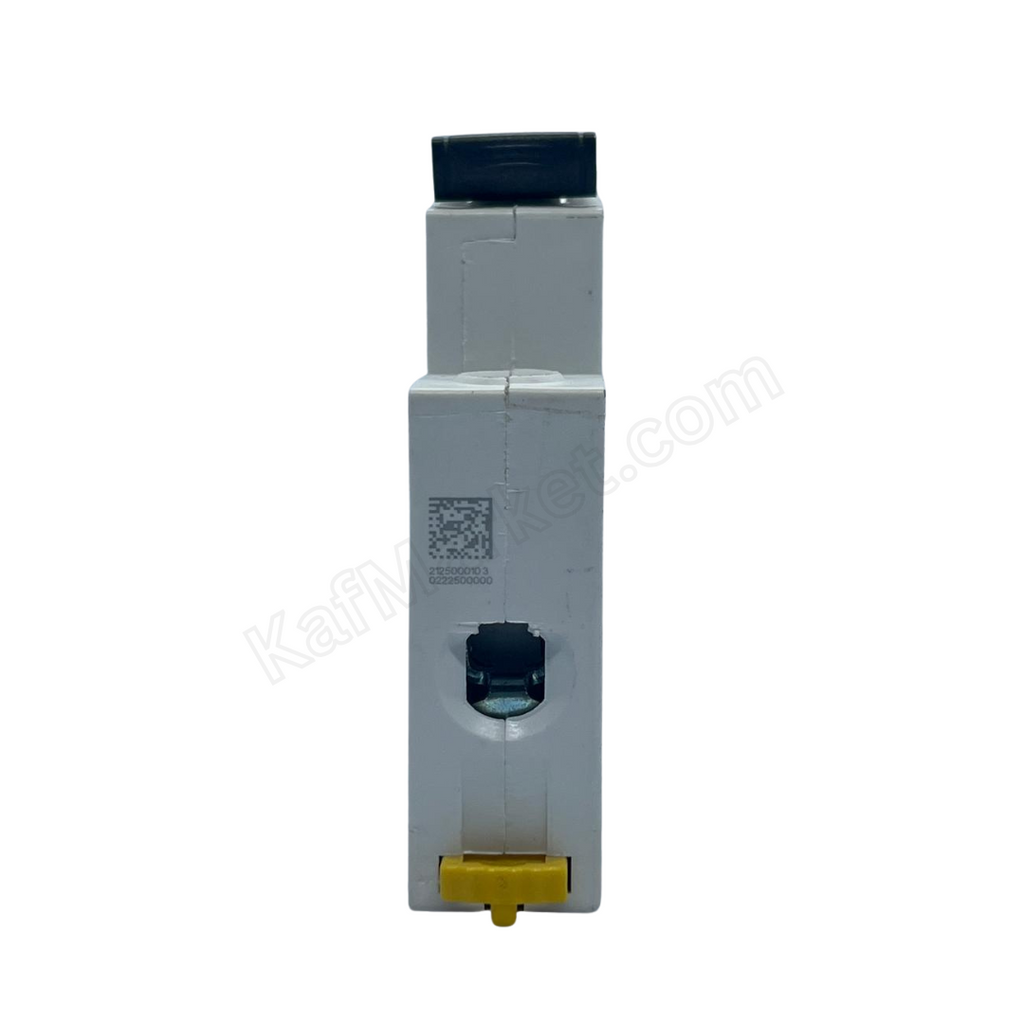

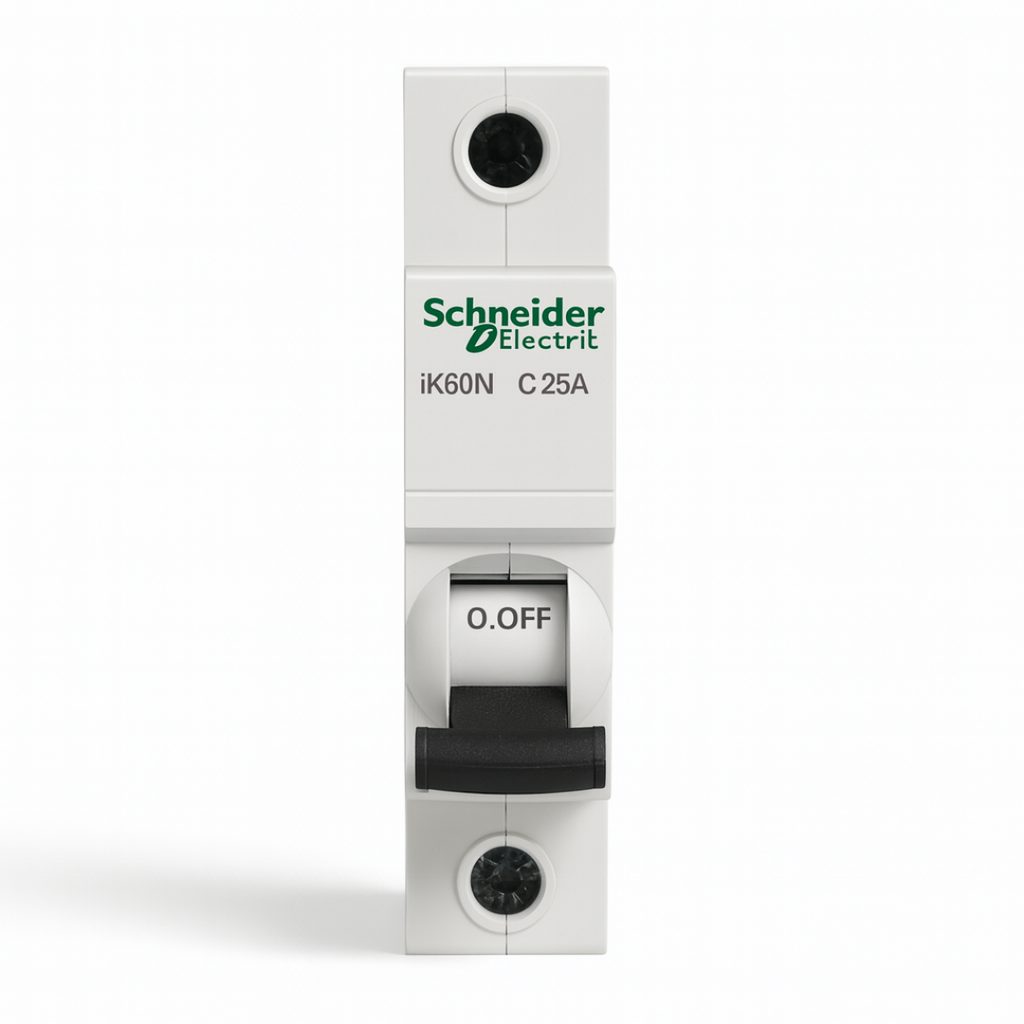

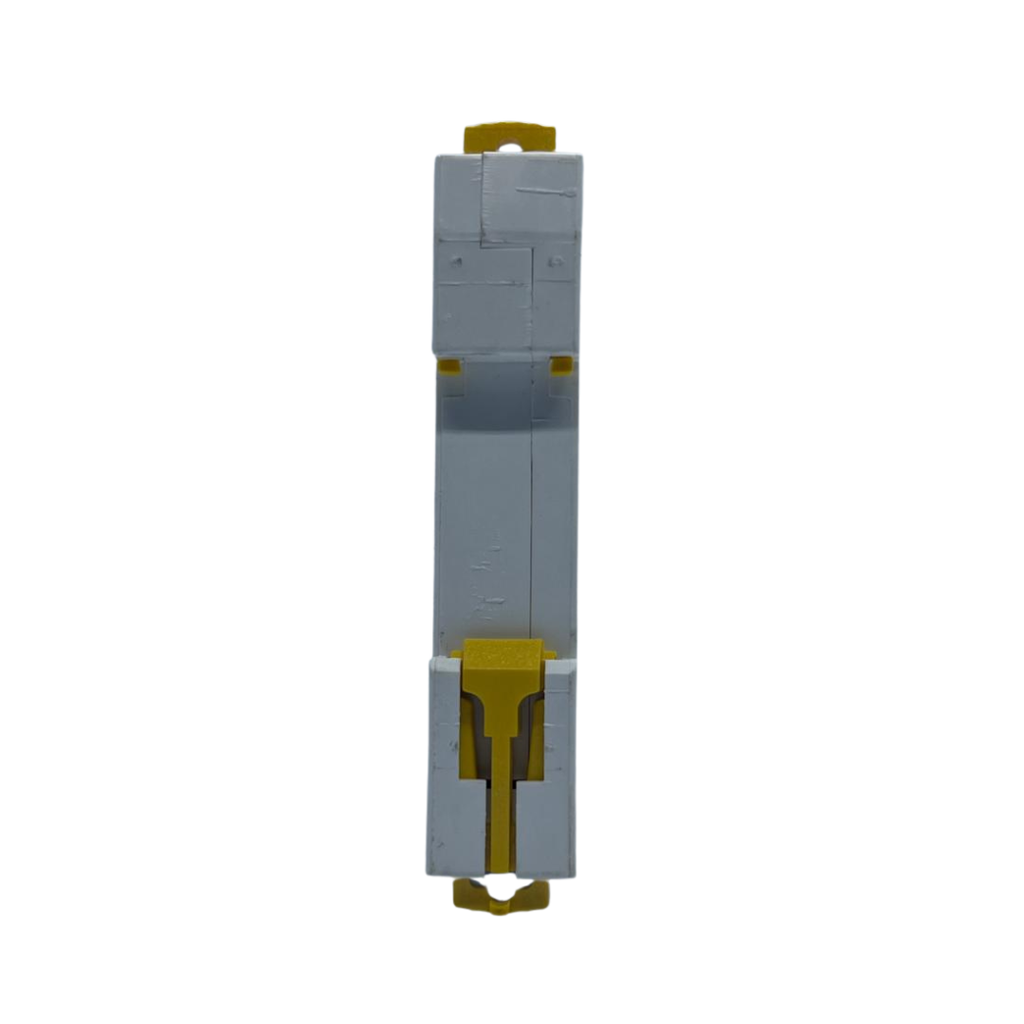

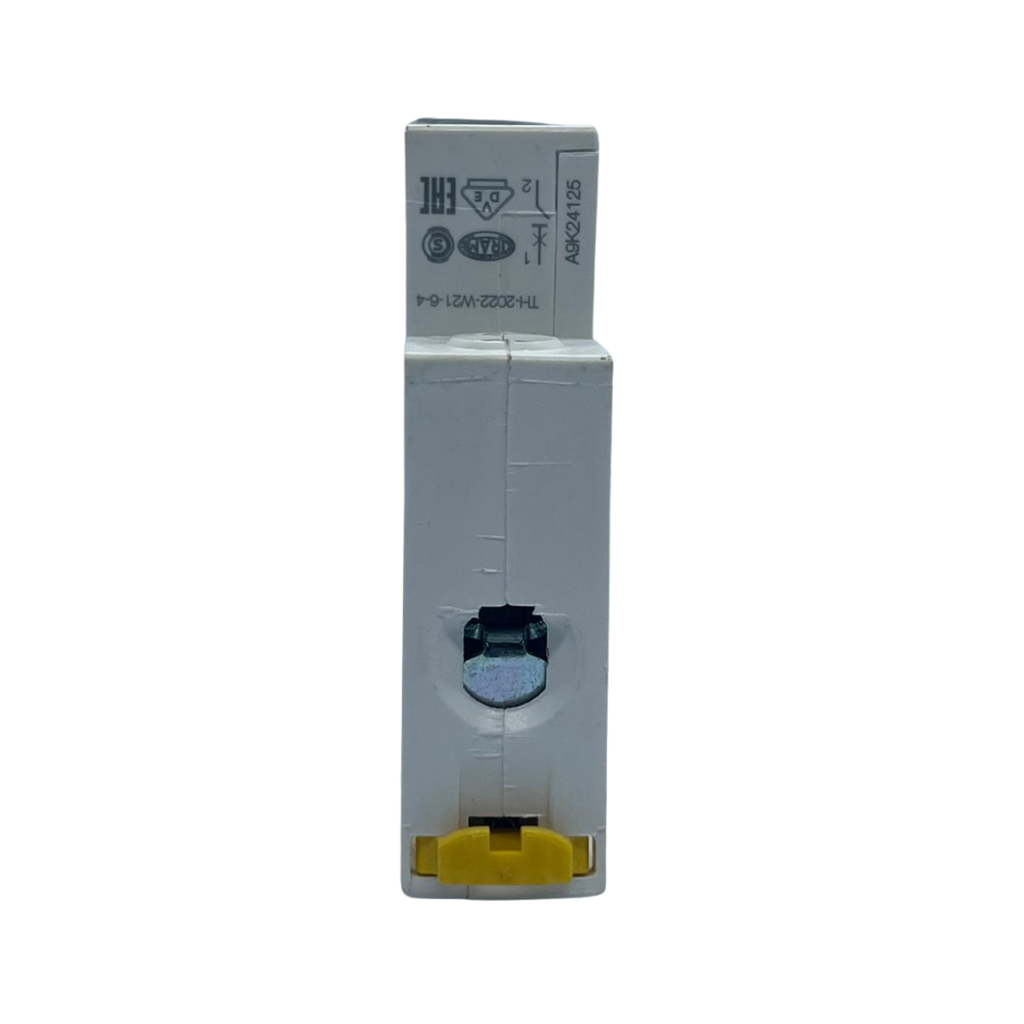

25A 1P Miniature Circuit Breaker (MCB), 6kA Schneider Electric قاطع احادي 25 امبير 6ك 1 بول شنايدر الكتريك

This Acti9 iK60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA at 220VAC to 240VAC conforming to EN/IEC 60898-1 standard. It complies with residential and light commercial applications.

This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism, independent of manual operation, improves its service life.

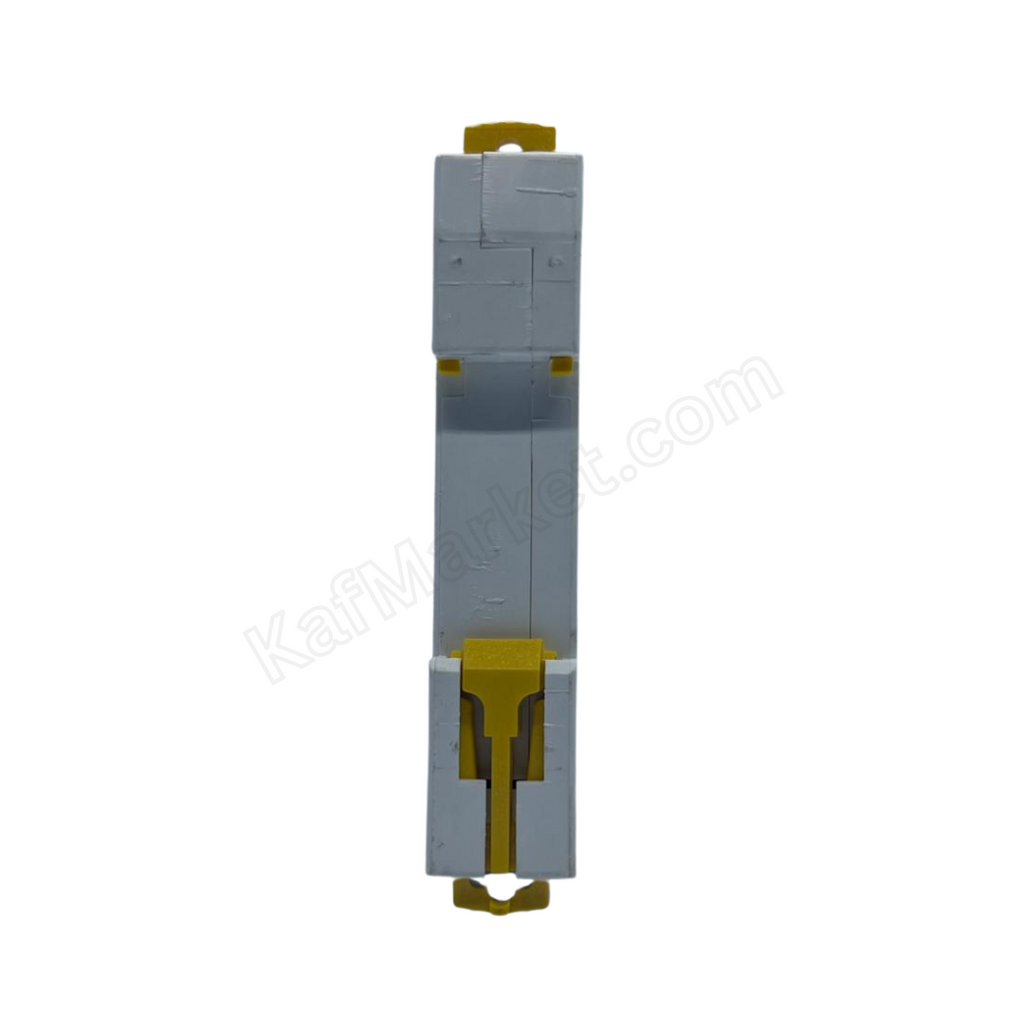

It has an electrical endurance up to 10,000 cycles and a mechanical endurance up to 20,000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC 60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV.

The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C
